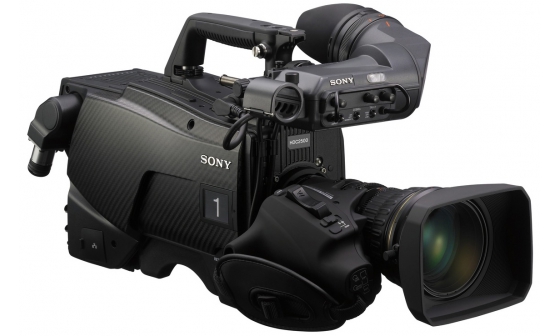

HDC-2500
3G雙速多格式高解析攝影機

------------------------------------------------------

特價販售中,歡迎來電詢問
電話: 07-5551718   0921-237888
結帳方式:信用卡 / ATM / 貨到付款
放入購物車 購物車清單
◎3000元以上免運費
一般
重量 4.5KG

操作溫度 -20°C 至 +45°C (-4°F - +113°F)

儲存溫度 -20°C 至 +60°C (-4°F - +140°F)

電源需求 240 V AC,1.4 A(最大),
180 V DC,1.0 A(最大),
12 V DC,7 A(最大)
相機
裝置 3片三分之二英寸型逐行CCD

有效像素 1920×1080(H x垂直)

信號格式 1080/50i, 59.94i, 23.98p, 24p, 25p,29.97p
1080/50p, 59.94p, 720/50p, 59.94p,
1080/100i, 119.88i, 720/100p,119.88p

光譜系統 F1.4棱鏡系統

靈敏度 F10(1080 / 59.94i模式),
F11(1080 / 50i模式)
(2000 lx時,3200K,89.9%的反射率)

內置過濾器CC A:CROSS,B:3200K C:4300K,D:6300K,E:8000K

信噪比(1080i的,典型) -60分貝/ -64分貝(W / NS最大值)

水平分辨率(1080i的) 1000電視線(中鋒)

快門速度選擇 1/60,1/125,1/250,1/500,1/1000,1/ 2000秒(50I)
1/100,1/125,1/250,1/500,1/1000,1/ 2000秒(在59.94i)
1/32,1/48,1/96,1/100,1/125,1/ 250,1/500,1/1000,1/2000秒
(23.98P/ 24P)1/33,1/50,1/100,1/125,1/250,1/500,1/ 1000,1/2000秒(25P)
1/40,1/60,1/100,1/120,1/125,1/250,1/ 500,1/1000,1/2000秒(29.97P)
1/60,1/125,1/250,1/500,1/1000,1/ 2000秒(50P)
1/100,1/125,1/250,1/500,1/1000,1/ 2000秒(59.94P)

調製深度(1080i的,典型值) Y:在27.5兆赫(800電視線具有典型的鏡頭)的50%,PB / PR:在12 MHz 80%
輸入/輸出規格
音頻輸入(CH1) XLR-3pin(女)(X1),麥克風或線路可選

音頻輸入(CH2) XLR-3pin(女)(X1),AES / EBU或麥克風或線路可選

返回控制輸入 6pin(×1)

提詞器的輸出/輸入同步鎖相/返回輸入 BNC(X1),1.0 Vp-p的,75Ω

提詞器 BNC(X1),1.0 Vp-p的,75Ω

直流輸入 XLR-4pin(X1),10.5〜17 V DC

測試輸出 BNC(X1),1.0 Vp-p的,75Ω
SDI輸出1(內嵌音頻) BNC(X1)3G-SDI,HD-SDI

起重機 12pin(X1)

取景器 20pin(X1)

CCU 電光連接器(X1)

跟蹤 10pin(X1)

遠程 8pin(X1)

透鏡 12pin(×1)
  • Newly developed CCD and DSP

    The CCD and DSP provides incomparable picture quality due to the new 2/3-inch CCD & 16bit A/D converter, improved S/N Ratio, better low light and highlights handling. This enables more creative capabilities from variety shows to DMC productions and more realistic rendering of sport events.

  • 1080/50P and 3G single link

    The HDC-2500 offers 3G capability and Beyond 1080/50P format using the extra bandwidth: RGB 12bit output for creative shootings, 3D Transmission on one cable, extra fibre length up to 4km, double speed acquisition, gigabit Ethernet Trunk line, and more.

  • High reliability and operational efficiency

    The HDC-2500 has been designed to be more robust than ever for all kind of Outside Broadcasting shooting conditions. Its new carbon fibre body provides a more solid camera body for less weight and reduced environmental footprint.

  • Compatibility with HDC-1500R Series accessories

    As the HDC-2500 is fully compatible with HDC-1500R Series cameras, it inherits their very wide choice of peripherals such as viewfinders (HDVF), Remote Control Panels (RCP) and Sony's unique Large Lens Adapters (HDLA) system.

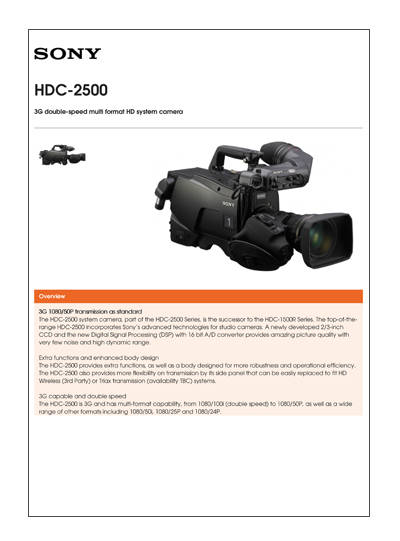

HDC-2500 Brochure.pdf

Sony_HDC-2000_4300.pdf
