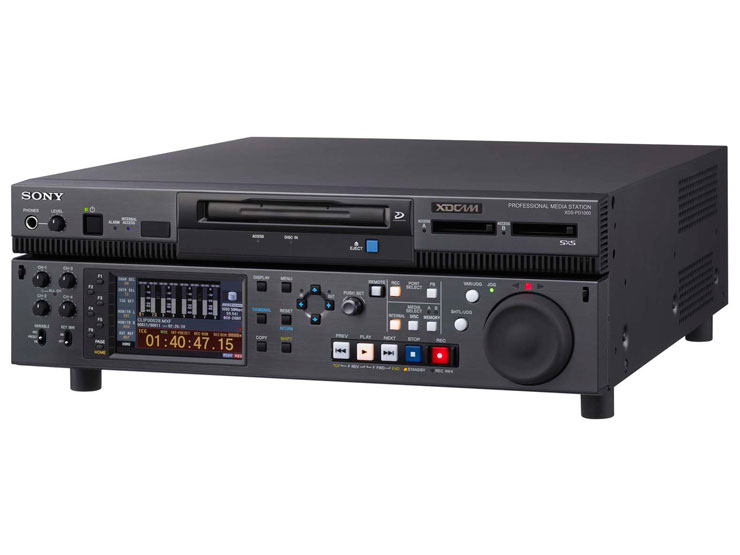

一般 |
|
|
重量 |
17公斤 |
|
|
尺寸(W
x H x D) |
42.4 x 13.2 x 46公分 |
|
|
操作溫度 |
5 ~ 40℃
(41 ~ 104℉) |
|
|
儲存溫度 |
-20 ~ 60℃
(-4 ~ 140℉) |
|
|
電源需求 |
AC: 100V ~ 240V, 50/60Hz |
|
|
消耗功率 |
190W |
|
|
濕度 |
25 ~ 90% (相對溼度) |
|
|
Recording/Playback format (Video) MPEG HD422 |
CBR: 50Mbps |
|
|
Recording/Playback format (Video) MPEG HD |
HQ mode (VBR,
最大bit
rate: 35 Mbps),
SP mode* (CBR, 25 Mbps),
LP mode* (VBR,
最大bit
rate: 18 Mbps),
MPEG IMX (CBR, 50/40*/30* Mbps)
DVCAM (CBR, 25 Mbps) * Playback/Copy only |
|
|
Recording/Playback format (Audio) |
MPEG HD422: 8 ch/24 bits/48 kHz
MPEG HD: 4 ch/16 bits/48 kHz
MPEG IMX: 4 ch/24 bits/48 kHz or 8 ch/16 bits/48 kHz
DVCAM: 4 ch/16 bits/48 kHz |
|
|
Recording/Playback format (Proxy Video) |
MPEG-4 |
|
|
Recording/Playback format (Proxy Audio) |
A-law (8 ch/8 bits/8 kHz) |
|
|
Recording/Playback time [Internal Storage] MPEG HD422 |
50Mbps: Approx. 30 hour |
|
|
Recording/Playback time [Internal Storage] MPEG HD |
35Mbps,4ch audio: > 48hour
35Mbps,2ch audio: > 50hour*
25Mbps,4ch audio:
約63hour*
25Mbps,2ch audio:
約66hour*
18Mbps,4ch audio: > 82hour*
18Mbps,2ch audio: > 88hour* * Playback/Copy only |
|
|
Recording/Playback time [Internal Storage] MPEG IMX |
50 Mbps:
約33
hour
40 Mbps:
約40
hour *
30 Mbps:
約50
hour * *Playback/Copy |
|
|
Recording/Playback time [Internal Storage] DVCAM |
25 Mbps:
約
61 hour |
|
|
Search speed range (Shuttle mode) |
-20 times to +20 times normal speed |
|
|
Search speed range (Variable mode) |
-2 times to +2 times normal speed |
|
|
Search speed range (Jog mode) |
-1 time to +1 time normal speed |
|
|
Search speed range (F.Fwd/Rev) |
-35/+35 times normal speed |
|
內部儲存 |
|
儲存類型 |
HDD, SATA, 500GB |
|
|
驅動單元數目 |
3 |
|
|
總容量(資料區) |
1TB |
|
|
Raid |
Raid-4 |
|
Video Performance Specifications |
|
取樣頻率 |
Y: 74.25MHz, Pb/Pr: 37.125MHz |
|
|
量化 |
8bits/sample |
|
|
Error Correction |
Reed Solomon Code |
|
Audio Performance Specifications |
|
取樣頻率 |
48H |
|
|
量化 |
24 bits |
|
|
Frequency response |
20Hz to 20kHz +0.5dB/-1.0dB (0 dB at 1kHz) |
|
|
Dynamic range |
90dB或更多 |
|
|
Distortion |
0.05%或更少
(at 1 kHz) |
|
|
Headroom |
-20/-18/-16/-12/-9(EBUL) dB (可選擇) |
|
處理器調整範圍 |
|
Video Level |
-∞ to +3 dB |
|
|
Chroma Level |
-∞ to +3 dB |
|
|
Setup/Black Level |
±30 IRE/±210 mV |
|
|
Chroma Phase |
±30° |
|
|
System Sync Phase |
± 15 μs |
|
|
System SC Phase |
0 to 400 ns |
|
輸入/輸出規格 |
|
Reference Input |
BNC x 2 (including loop through), HD Tri-level sync (0.6
Vp-p/75 Ω/negative) or SD blackburst/composite sync
(0.286 Vp-p/75 Ω/negative) |
|
|
HD/SD-SDI Input |
BNC (x1) (HD/SD/DVB-ASI (option) switchable) HD-SDI:
SMPTE 292M (w/embedded audio) SD-SDI: SMPTE 259M
(w/embedded audio) |
|
|
Analog Audio Input |
XLR-type 3-pin (female) (x2), +4/0/-3/-6 dBu
(selectable), 10 kΩ, balanced |
|
|
Digital Audio Input (AES/EBU) |
BNC (x4), 8 ch (2 ch each, 1/2 ch, 3/4 ch, 5/6 ch and
7/8 ch), AES-3id-1995 |
|
|
Time Code Input |
BNC (x1), SMPTE time code, 0.5 Vp-p to 18 Vp-p/10 kΩ/unbalanced |
|
|
System time code input |
BNC (x1), SMPTE time code, 0.5 Vp-p to 18 Vp-p/10 kΩ/unbalanced |
|
|
HD-SDI Output |
BNC (x2), 1: SMPTE 292M (w/embedded audio) 2: SMPTE 292M
(w/embedded audio), character On/Off |
|
|
SD-SDI Output |
BNC (x2), 1: SMPTE 259M (w/embedded audio) 2: SMPTE 259M
(w/embedded audio), character On/Off |
|
|
Analog composite output |
BNC (x1), 1.0 Vp-p/75 Ω/negative, SMPTE 170M |
|
|
HD-SDI monitor output |
BNC (x1), SMPTE 292M (w/embedded audio), character
On/Off |
|
|
SD-SDI monitor output |
BNC (x1), SMPTE 259M (w/embedded audio), character
On/Off |
|
|
DVB-ASI output |
BNC (x1) |
|
|
Analog composite monitor output |
BNC (x1), 1.0 Vp-p/75 Ω/negative, SMPTE 170M, character
On/Off |
|
|
HDMI monitor output |
Type A 19-pin (x1) |
|
|
Monitor |
DE-15 (x1), (VGA) |
|
|
Analog audio output |
XLR-type 3-pin (male) (x2) (channel selectable),
+4/0/-3/-6 dBu (selectable), 600 Ω, Lo-z, balanced |
|
|
Analog audio monitor |
XLR-type 3-pin (male) (x2), +4 dBu, 600 Ω, Lo-Z,
balanced |
|
|
Digital Audio Output (AES/EBU) |
BNC (x4), 8 ch (2 ch each, 1/2 ch, 3/4 ch, 5/6 ch and
7/8 ch), AES-3id-1995 |
|
|
Headphone Output |
JM-60 Stereo phone jack (x1), -∞ ~ -13 dBu, 8 Ω,
unbalanced |
|
|
Time Code Output |
BNC (x1), SMPTE time code, 1.0 Vp-p/75 Ω/unbalanced |
|
|
Video Control |
D-sub 9-pin (female) (x1), EIA RS-423 |
|
|
Ethernet |
RJ-45 (x1), 1000BASE-T: IEEE802.3ab, 100BASE-TX:
IEEE802.3u, 10BASE-T: IEEE802.3 |
|
|
USB |
Hi-Speed USB (USB 2.0) (Front x1, Rear x4) |
|
|
Remote (9P) Input |
D-sub 9-pin (female) (x2), RS-422A |
|
|
GPIO |
D-sub 15-pin (female) (x1), Input: CMOS, Output:
open-collector |
|
|
AC Input |
x 1, 100 to 240 V, 50/60 Hz |
|
其他規格 |
|
內建顯示 |
4.3-inch type color LCD monitor |
|
8x PCI Express擴充槽 |
x2插槽 |
